Multipoint Smart Lock, Cloud Smoke Gray: technical guide
A multipoint smart door lock for homes and offices, with a fingerprint reader in the handle. Four versions from password-only to password, fingerprint and face recognition.
- Fingerprint
- Face recognition
- Card
- Passcode
- Mobile app
- Door thickness
- 38-60 mm
- Panel material
- Aluminium alloy
- Power
- 4 or 6 x AA (5#) batteries
- Lock body
- Multipoint
- Connectivity
- LoRa, 433 MHz, Wi-Fi, Bluetooth
- Storage
- 800 unlock records
Finishes and versions
Cloud Smoke Gray
Password only
Cloud Smoke Gray
Password and fingerprint
Cloud Smoke Gray
Password, fingerprint and facial recognition
Cloud Smoke Gray
Card swiping
Specifications
| Material | |
|---|---|
| Front panel | Aluminium alloy |
| Rear panel | Aluminium alloy |
| Unlocking methods | |
| Card | Mifare S50 card |
| Mechanical key | Alloy key (emergency backup) |
| Passcode | 8-12 digit numeric password |
| Mobile app | Mobile app control |
| Fingerprint | Semiconductor fingerprint sensor, 100 fingerprints |
| Face | 100 faces |
| Power supply | |
| Battery powered | 4 or 6 x AA (5#) batteries |
| Alternative | Lithium battery |
| Working environment | |
| Operating temperature | -20 to 55 °C |
| Operating humidity | 15 to 93% RH |
| Electrical performance | |
| Static power consumption | < 40 µA |
| Power consumption when opening the door | < 150 mA |
| Battery life | > 10,000 unlocks |
| Low-battery alarm voltage | 4.5 V ± 0.2 V |
| Fitting | |
| Applicable door thickness | 38-60 mm |
| Lock body | Multipoint door lock body, 240 mm |
| Storage | Up to 800 unlock records (including mechanical key unlocks) |

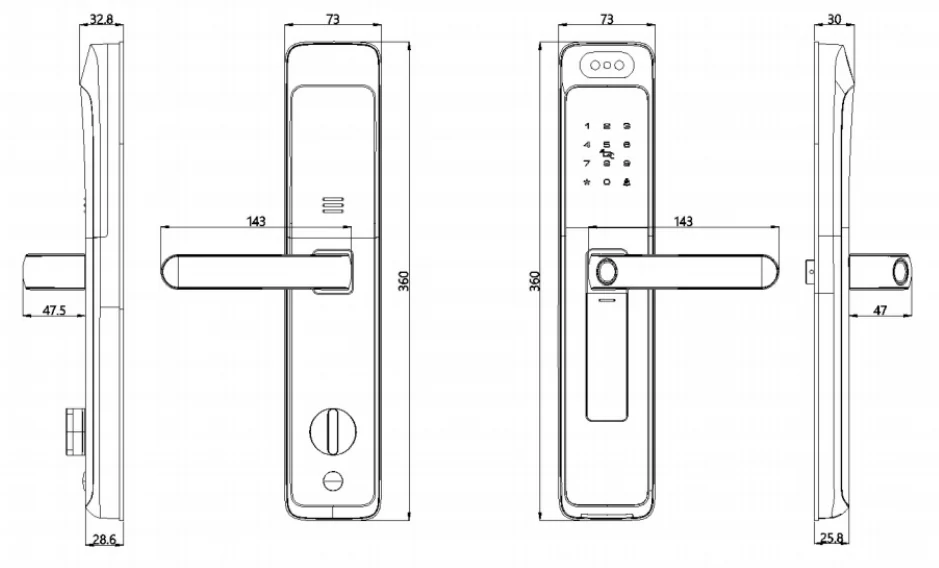

Dimensions and lock body drawing
Tap a drawing to enlarge it. Dimensions are in millimetres, as printed on the original datasheet.
Features
- Large-capacity storage chip: up to 800 unlock records, including mechanical key unlocks.
- Sealed ABS enclosure protects the main circuit board and induction coil, for strong signal reception and sensitive card reading.
- Stainless steel lock bolt with excellent impact, wear and corrosion resistance.
- Self-locking protection: after 5 incorrect card swipes the lock locks itself for 3 minutes.
- Hidden mechanical lock core design resists tampering.
Products this guide applies to
Free installation on every order. Message us if you are not sure which model you have.
Common questions
What door thickness does the Multipoint Smart Lock, Cloud Smoke Gray fit?
Doors from 38 to 60 mm thick. Check the lock body drawing on this page for the mortise dimensions before you prepare the door.
What batteries does it use?
4 or 6 x AA (5#) batteries; Lithium battery. The low-battery alarm sounds at 4.5 V ± 0.2 V.
What if the batteries run flat?
Use the mechanical key, or power the lock through the Micro-USB emergency power interface (for example from a power bank).
How many unlock records can it store?
Up to 800 unlock records (including mechanical key unlocks).
