Multipoint Smart Lock with Face Recognition and 4G, Black Starry Sky: technical guide
A multipoint smart door lock in Black Starry Sky. Five versions from swipe card to face recognition with PIN and fingerprint, with 4G among the connectivity options.
- Fingerprint
- Face recognition
- Card
- Passcode
- Mobile app
- Door thickness
- 38-60 mm
- Panel material
- Aluminium alloy
- Power
- 4-cell 5# (AA) battery pack, 4.2-6.5 V
- Lock body
- Multipoint
- Connectivity
- LoRa, 433 MHz, Wi-Fi, Bluetooth, 4G
- Storage
- 800 unlock records

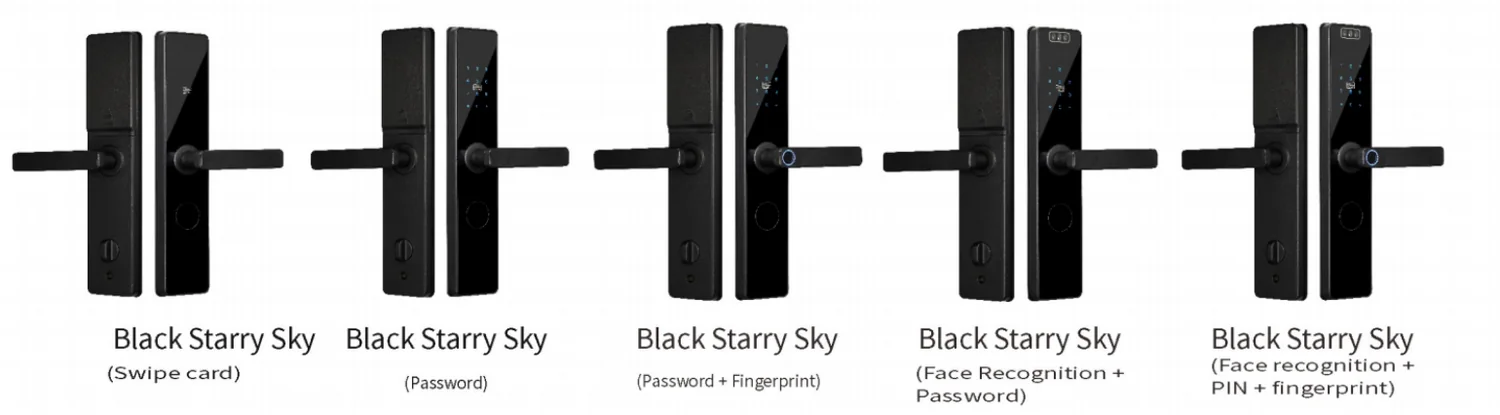

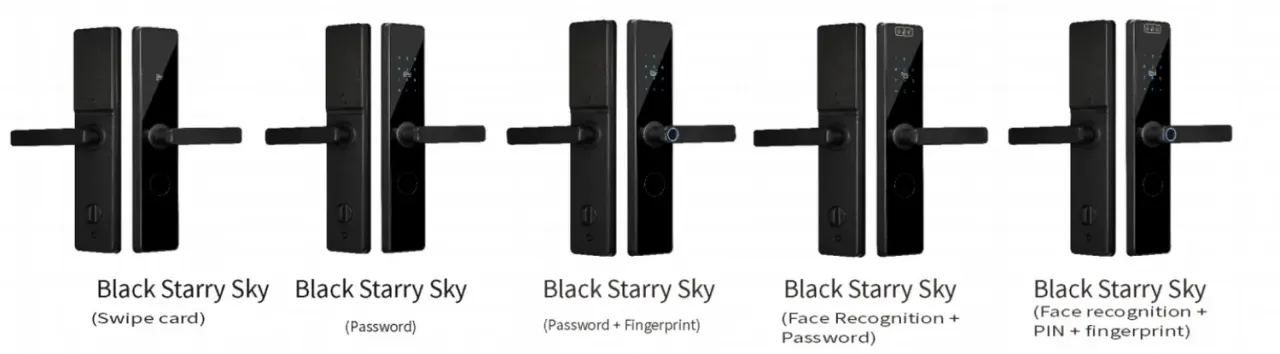

Finishes and versions
Black Starry Sky
Swipe card
Black Starry Sky
Password
Black Starry Sky
Password and fingerprint
Black Starry Sky
Face recognition and password
Black Starry Sky
Face recognition, PIN and fingerprint
Specifications
| Material | |
|---|---|
| Front panel | Aluminium alloy |
| Rear panel | Aluminium alloy |
| Unlocking methods | |
| Proximity card | Mifare S50 card |
| Mechanical key | Alloy key (emergency backup) |
| Passcode | 8-12 digit numeric password |
| Mobile app | Mobile app control |
| Fingerprint | Optical fingerprint capture, 100 fingerprints |
| Face | 3D facial capture, 100 faces |
| Power supply | |
| Battery powered | 4-cell 5# (AA) battery pack, 4.2-6.5 V |
| Alternative | 6-cell 5# (AA) battery pack, 4.2-6.5 V |
| Alternative | Lithium battery, 4.8-7.4 V |
| Working environment | |
| Operating temperature | -20 to 55 °C |
| Operating humidity | 15 to 93% RH |
| Electrical performance | |
| Static power consumption | < 40 µA |
| Power consumption when opening the door | < 150 mA |
| Battery life | > 10,000 unlocks |
| Low-battery alarm voltage | 4.5 V ± 0.2 V |
| Fitting | |
| Applicable door thickness | 38-60 mm |
| Lock body | Multipoint door lock body, 240 mm |
| Storage | Up to 800 unlock records (including mechanical key unlocks) |

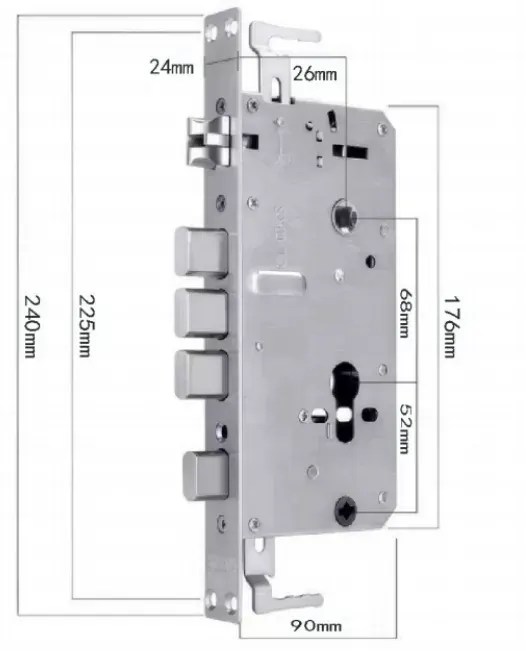

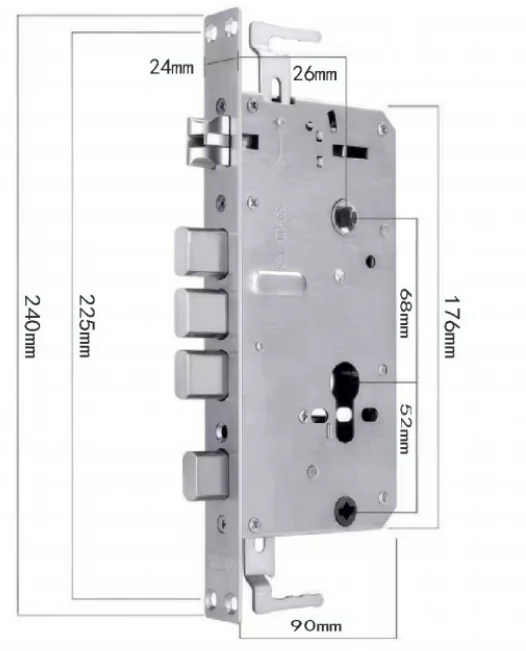

Dimensions and lock body drawing
Tap a drawing to enlarge it. Dimensions are in millimetres, as printed on the original datasheet.
Features
- Large-capacity storage chip: up to 800 unlock records, including mechanical key unlocks.
- Sealed ABS enclosure protects the main circuit board and induction coil, for strong signal reception and sensitive card reading.
- Stainless steel lock bolt with excellent impact, wear and corrosion resistance.
- Self-locking protection: after 5 incorrect card swipes the lock locks itself for 3 minutes.
- Hidden mechanical lock core design resists tampering.
Products this guide applies to
Free installation on every order. Message us if you are not sure which model you have.
Common questions
What door thickness does the Multipoint Smart Lock, Black Starry Sky fit?
Doors from 38 to 60 mm thick. Check the lock body drawing on this page for the mortise dimensions before you prepare the door.
What batteries does it use?
4-cell 5# (AA) battery pack, 4.2-6.5 V; 6-cell 5# (AA) battery pack, 4.2-6.5 V; Lithium battery, 4.8-7.4 V. The low-battery alarm sounds at 4.5 V ± 0.2 V.
What if the batteries run flat?
Use the mechanical key, or power the lock through the Micro-USB emergency power interface (for example from a power bank).
How many unlock records can it store?
Up to 800 unlock records (including mechanical key unlocks).
