Card-Reader Hotel Lock (75 x 300 mm): technical guide

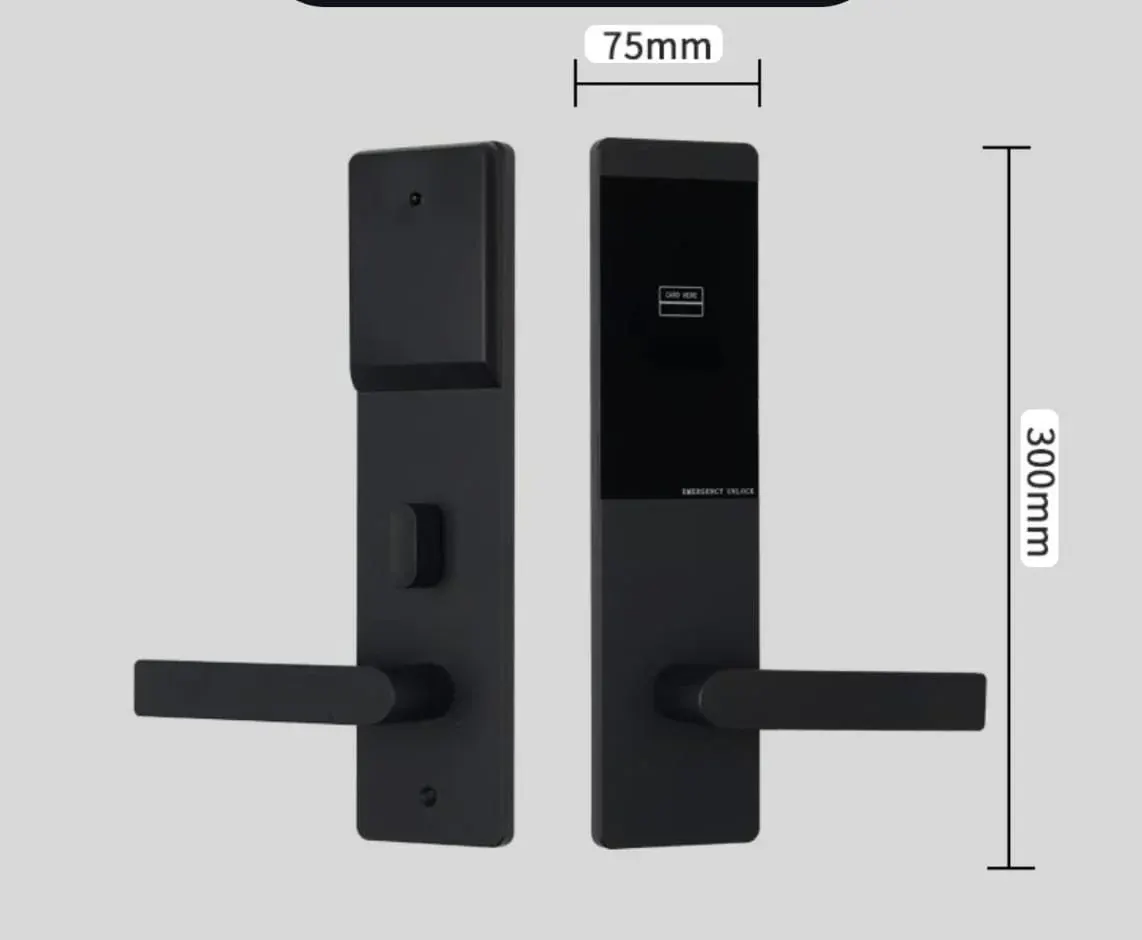

A black hotel room lock with a glass card-reader panel and a lever handle. Mifare card unlock, powered by four AA batteries.
- Card
- Panel size
- 75 x 300 mm
- Power
- DC 6 V, 4 alkaline AA
- Battery life
- About 10,000 openings
- Card type
- Mifare 1, read in under 1 s
- Card reading distance
- 6 cm or less
- Working temperature
- -20 to +65 C
- Working humidity
- 20% to 90%
- Lock body
- Five-bolt, three-link
- Door types
- Wooden, iron, etc.
- Low-battery warning
- Below about 4.5 V

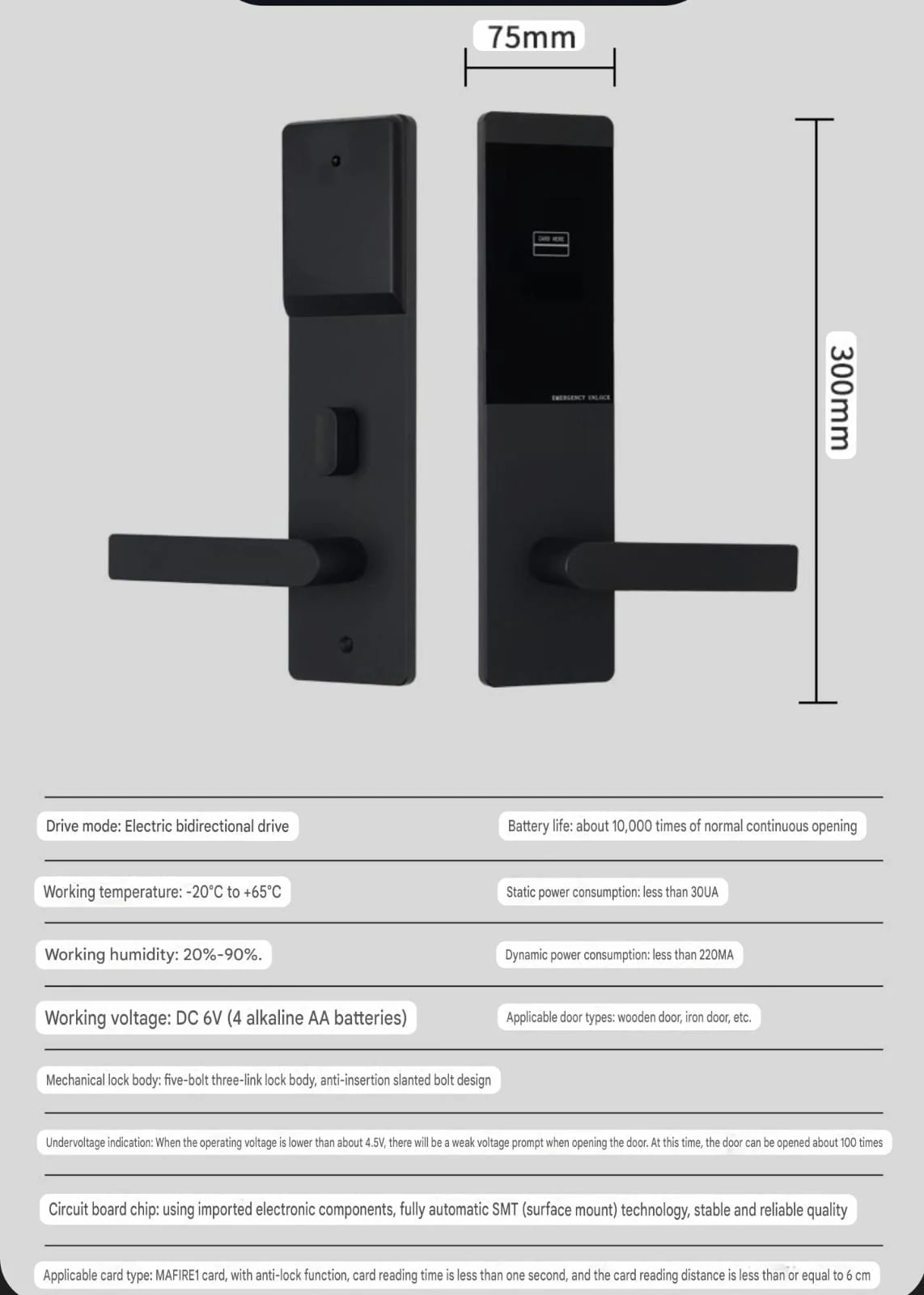

Technical sheet
Tap the sheet to enlarge it. Dimensions are in millimetres.
