Slim Aluminium Hotel Lock (Sand Black, Sanded Silver, Placer Gold): technical guide

A slim hotel room lock with a black glass window over a plate in a sanded aluminium finish. Sand Black, Sanded Silver and Placer Gold.

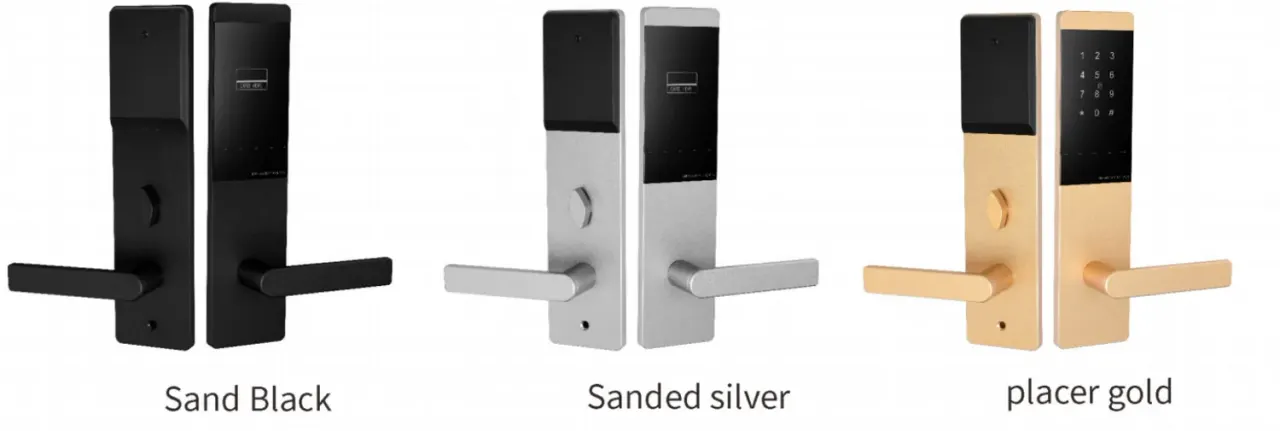

Finishes and versions

Slim Aluminium Hotel Lock (Sand Black, Sanded Silver, Placer Gold) specifications
Material
Front panel	Aluminium alloy
Rear panel	Aluminium alloy
Unlocking methods
Proximity card	Mifare S50 card
Mechanical key	Alloy key (emergency backup)
Passcode	8-12 digit numeric password
Mobile app	Mobile app control
Power supply
Battery powered	4-cell 5# (AA) battery pack, 4.2-6.5 V
Working environment
Operating temperature	-20 to 55 °C
Operating humidity	15 to 93% RH
Electrical performance
Static power consumption	< 40 µA
Power consumption when opening the door	< 150 mA
Battery life	> 10,000 unlocks
Low-battery alarm voltage	4.5 V ± 0.2 V
Fitting
Applicable door thickness	38-60 mm
Lock body	Hotel mortise lock, one-piece plates
Storage	Up to 800 unlock records (including mechanical key unlocks)

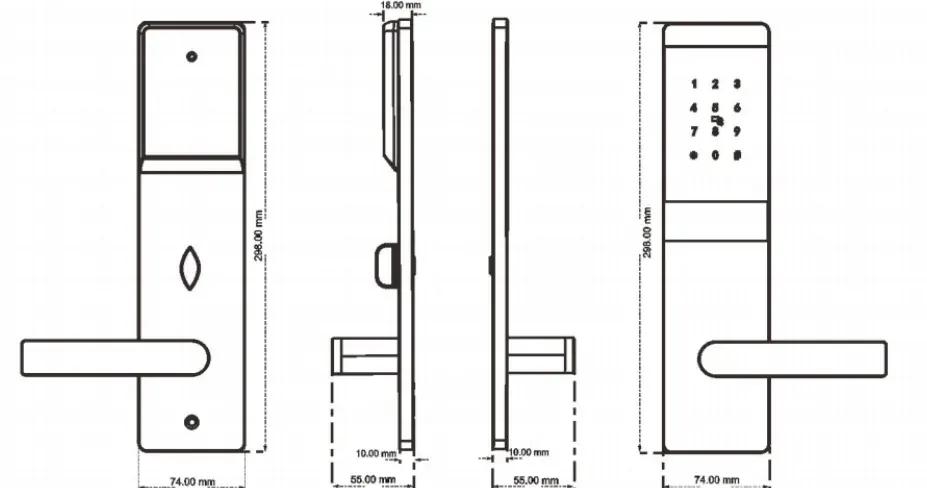

Tap a drawing to enlarge it. Dimensions are in millimetres, as printed on the original datasheet.

Large-capacity storage chip: up to 800 unlock records, including mechanical key unlocks.
Sealed ABS enclosure protects the main circuit board and induction coil, for strong signal reception and sensitive card reading.
Lock bolt with excellent impact, corrosion and wear resistance.
Self-locking protection: after 5 incorrect card swipes the lock locks itself for 3 minutes.
Hidden mechanical lock core design resists tampering.
Imported motor for fast response, quick reset, high sensitivity and long service life.
Automatic alarm if the latch bolt is not fully engaged in the locked position.

Free installation on every order. Message us if you are not sure which model you have.

What door thickness does the Slim Aluminium Hotel Lock, Sanded Silver fit?

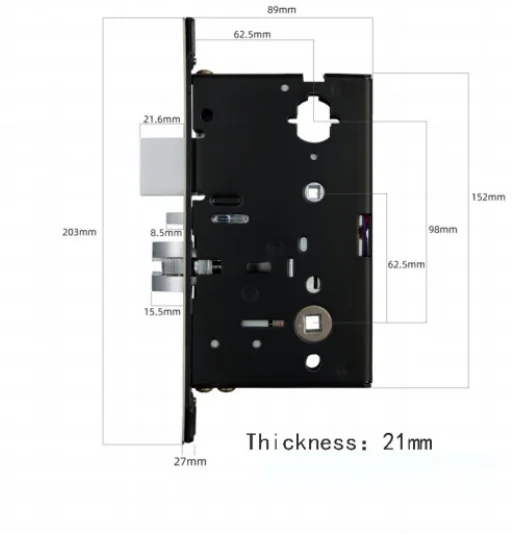

Doors from 38 to 60 mm thick. Check the lock body drawing on this page for the mortise dimensions before you prepare the door.

What batteries does it use?

4-cell 5# (AA) battery pack, 4.2-6.5 V. The low-battery alarm sounds at 4.5 V ± 0.2 V.

What if the batteries run flat?

Use the mechanical key, or power the lock through the Micro-USB emergency power interface (for example from a power bank).

How many unlock records can it store?

Up to 800 unlock records (including mechanical key unlocks).
