Smart door lock technical sheet
RZ-2 Smart Door Lock (78 x 360 mm): technical guide

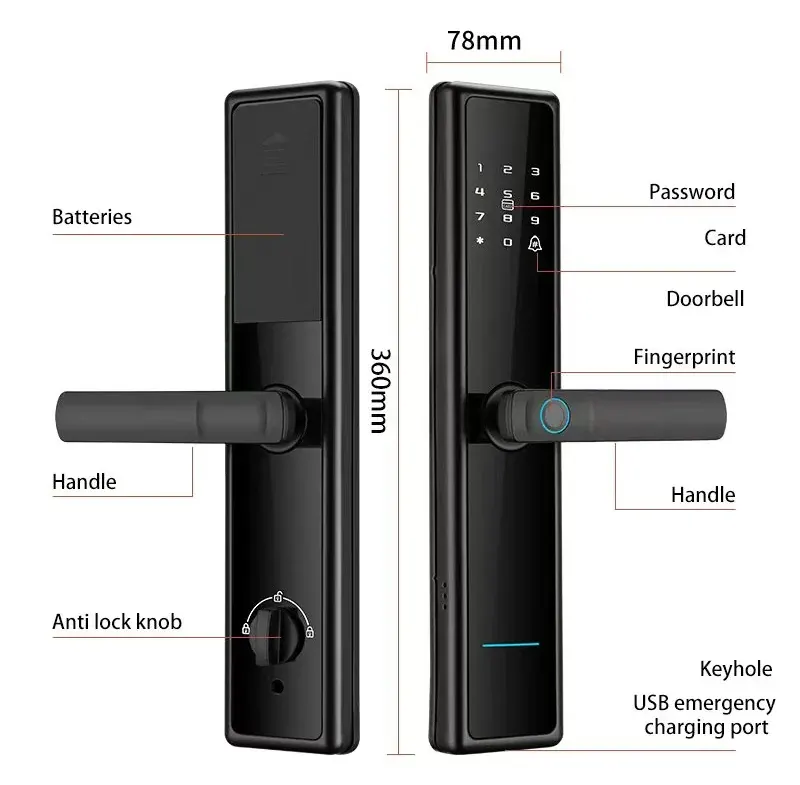

A black smart door lock with a keypad, fingerprint reader and lever handles. Fingerprint, password, card, NFC, app and key unlock.
- Fingerprint
- Card
- Passcode
- Mobile app
- Panel size
- 78 x 360 mm
- Colour
- Black
- Main material
- Iron
- Unlock ways
- Fingerprint, password, IC card, NFC, app, key
- Fingerprints stored
- 200 groups
- Fingerprint sensor
- Semiconductor
- Emergency power
- USB charging port
- Work current
- 0.2 to 0.3 A
- Working temperature
- -10 to +60 C
- Door type
- Wooden doors, over 4 cm thick

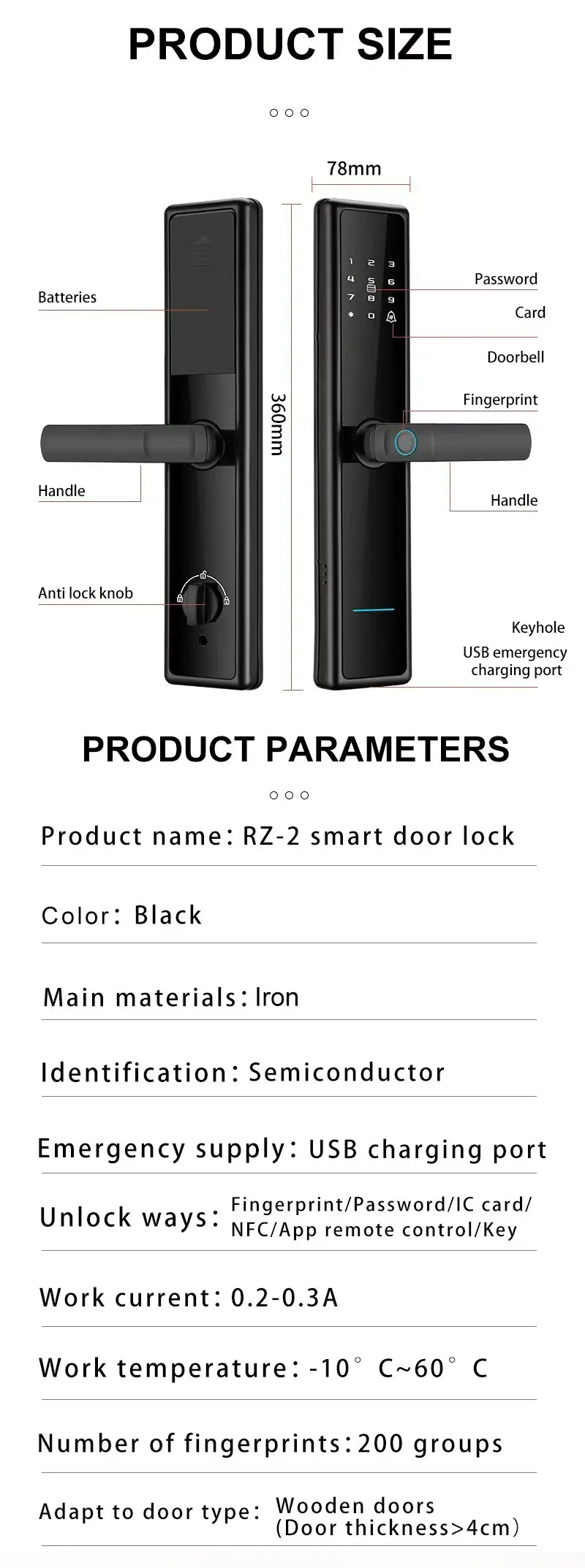

Technical sheet
Tap the sheet to enlarge it. Dimensions are in millimetres.
